*H.264 video compression, higher definition image and lower bit rate.
*P2P cloud service for Android/iOS mobile devices remote view anywhere anytime.
*Wireless WIFI connection,play and plug in.
*One-click setting, IP address was assigned automatically.
*Dual-stream encoding. Main stream for local view, presenting high quality image; Sub stream for online remote view, overcome limitation of bandwidth.

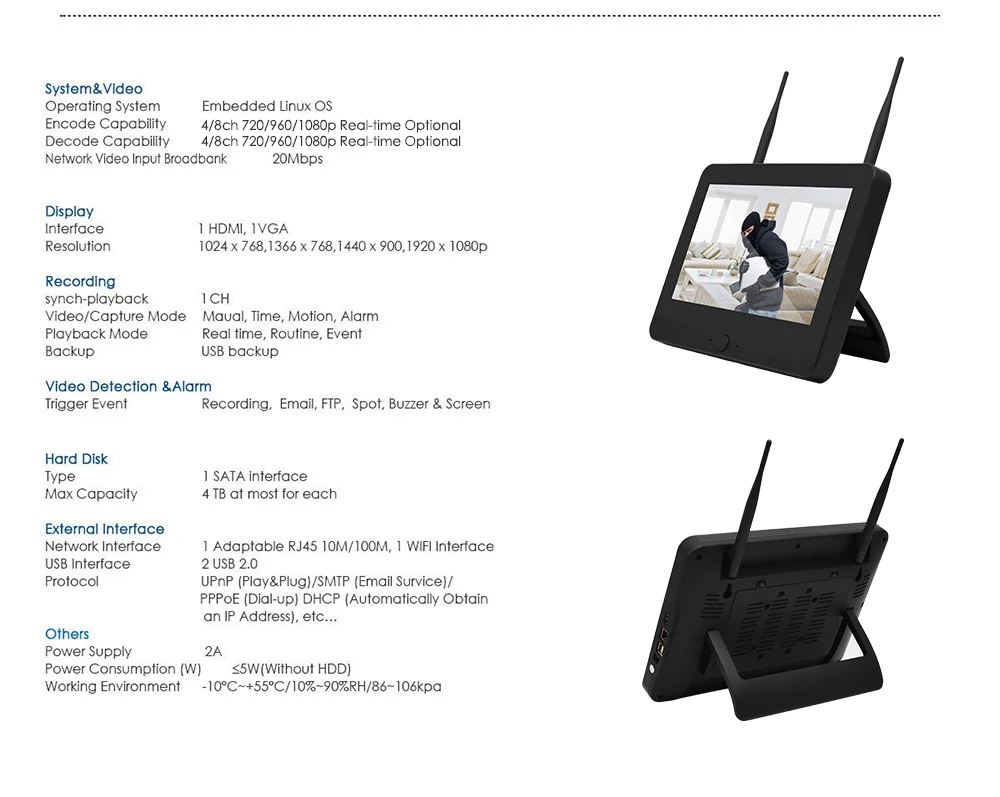

Power Supply: DC 12V/2A
Operating System: LINUX OS

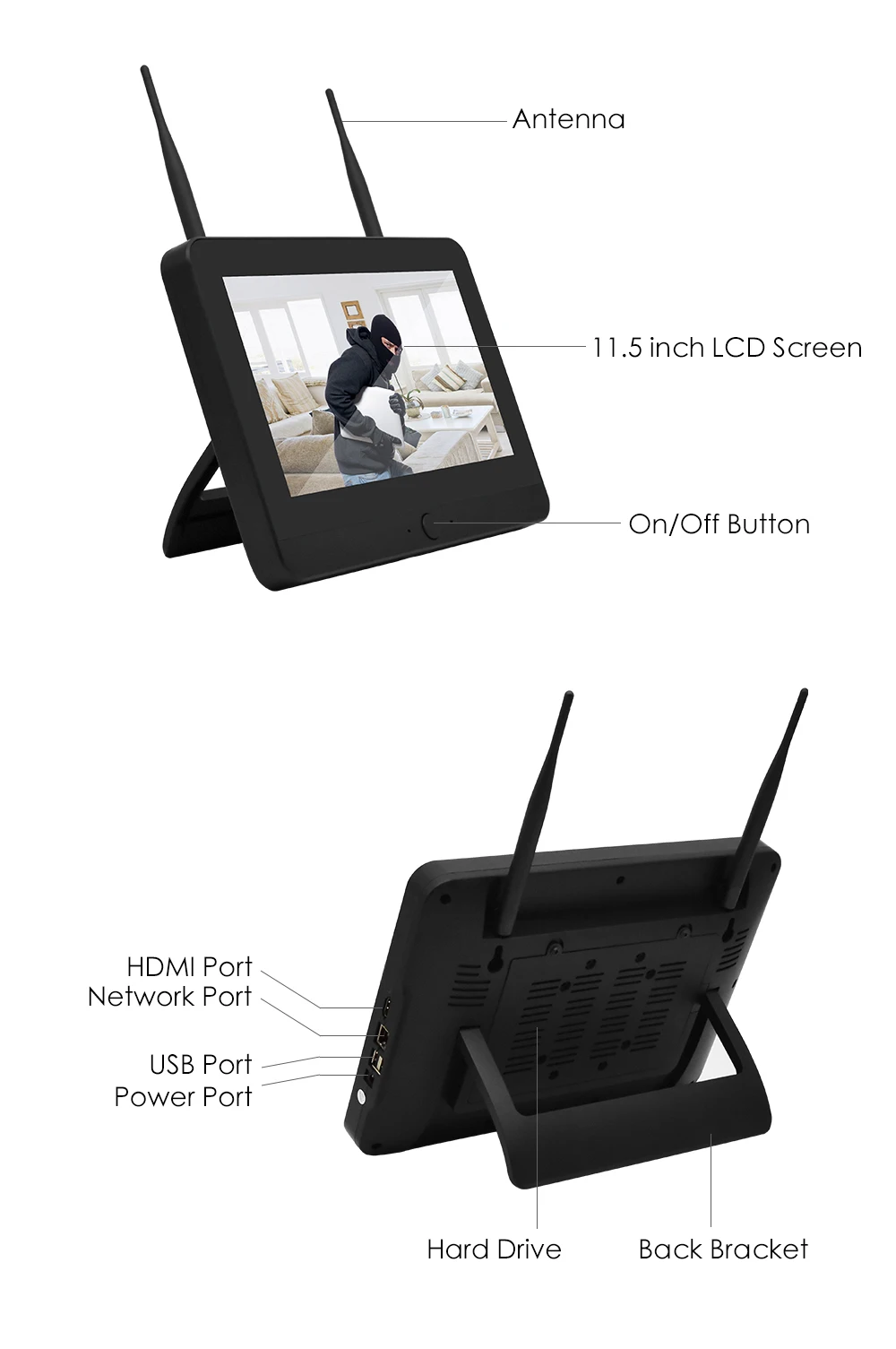

Menu Display: 1/4 11.5 inch screen
Record Mode: Manual/Scheduled/Motion
Compression Format: H.264
Sync-playback: 8 channel
OSD Language: English, German, French, Spanish, Italian, Japanese,etc
NVR Resolution: 1024*768, 1280*1024, 1440*900, 1080P
HDD Support: 3.5inch SATA port, Max 4TB capacity(HDD not included)
WiFi Protocol: 802.11b/g/n, dual WiFi antennas
Connection Distance: 100m (open), 20m(obstacled)
Power Consumption: <=5W(without HDD)
APP OS: support Android/iOS phone or pad
Protocol: HTTP, SMTP, PPPOE, FTP, UPnP, Onvif
NVR Size: 28*22.5*5.5cm; NVR Weight: 1432g/3.1lb
Power Supply: DC 12V/1A
Image Sensor: 1/4 inch CMOS
Pixels: 1.3MP megapixels
Focus: 3.6mm fixed Lens
Minimum illumination: 0.1Lux (IR on);0.01Lux(B/W)
IR Distance: 15-20 meters
Waterproof Grade: IP66
Material: Aluminum alloy
Camera Size: Approx. 6.5*6.5*18.5cm(L*W*H)
1* 8CH 1080P NVR (HDD not included)
9* 960P IP Camera
8* Camera Antennas
9* Plug Power Supply
1* USB Mouse
1* Network Cable
8* Bag of Mounting Screws
960P HD Video Surveillance System
This is an easy to install 960P high definition video surveillance system which are ideal for home and business security. You’ll get astonishing real-time video on your mobile devices from literally anywhere and always be in the know even you’re thousands of miles away.

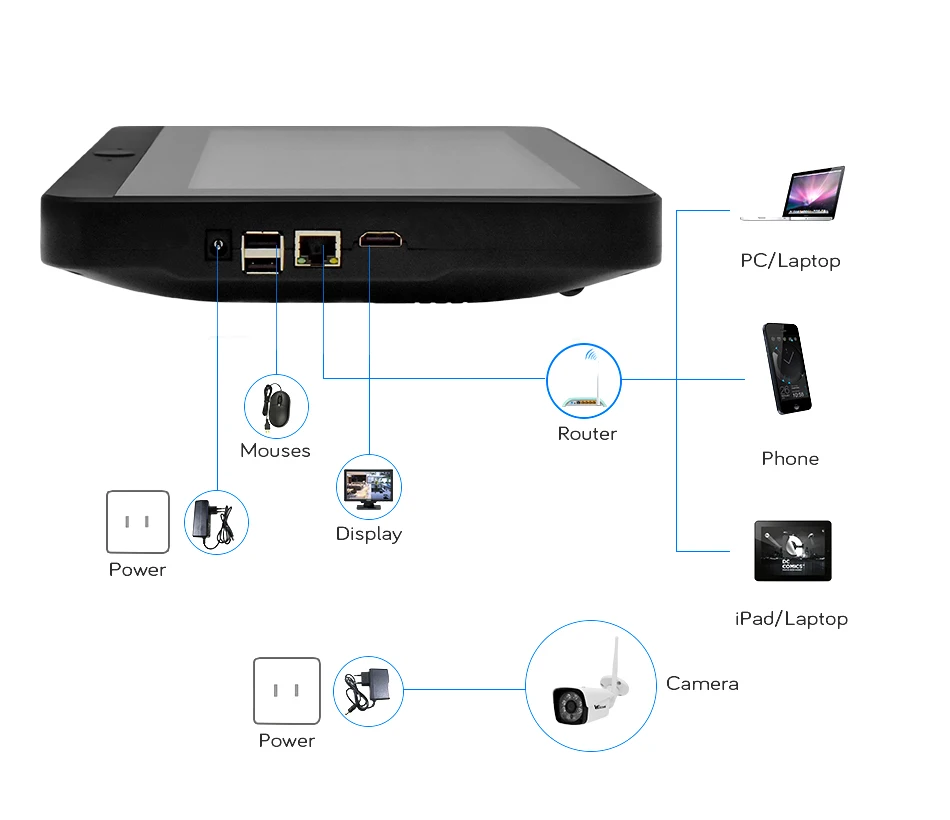

The system is plug and play, the recorder box built-in a router, all cameras wifi signal from the video recorder box, as long as you power on all cameras and recorder, it will working properly.
The wireless security surveillance system doesn't mean you can use the system without any cables, power supply still needed to power on the cameras and NVR, the power adaptera are provided in the package, don't support Batteries. (We Don't Take Charge of Installation)
Motion detection and instant Email alert
You can enable motion detection alerts, when the object moves, the camera will send the abnormal situation to your Email.
Smart Playback Any Time
It effectively economized your time in playing back the video, Incident video clips can be found and marked in no time with smart playback function. So you get the chance to go directly to incident video clips while skipping others.
Remote Viewing, Anywhere, Anytime
With the free app you'll know that's happening even when you're not around, Receive notifications and view live or recorded footage right from your phone.
Reliable and Applicable Wireless Connection
This advanced wireless system automatically connects when turned on, no wiring required. Range extender antennas ensure that the signals remain strong as you monitor your business or home wirelessly, up to 330ft(100 meters) in open area.
Tips: Please notice that the wireless signal distance is obtained in test environment.

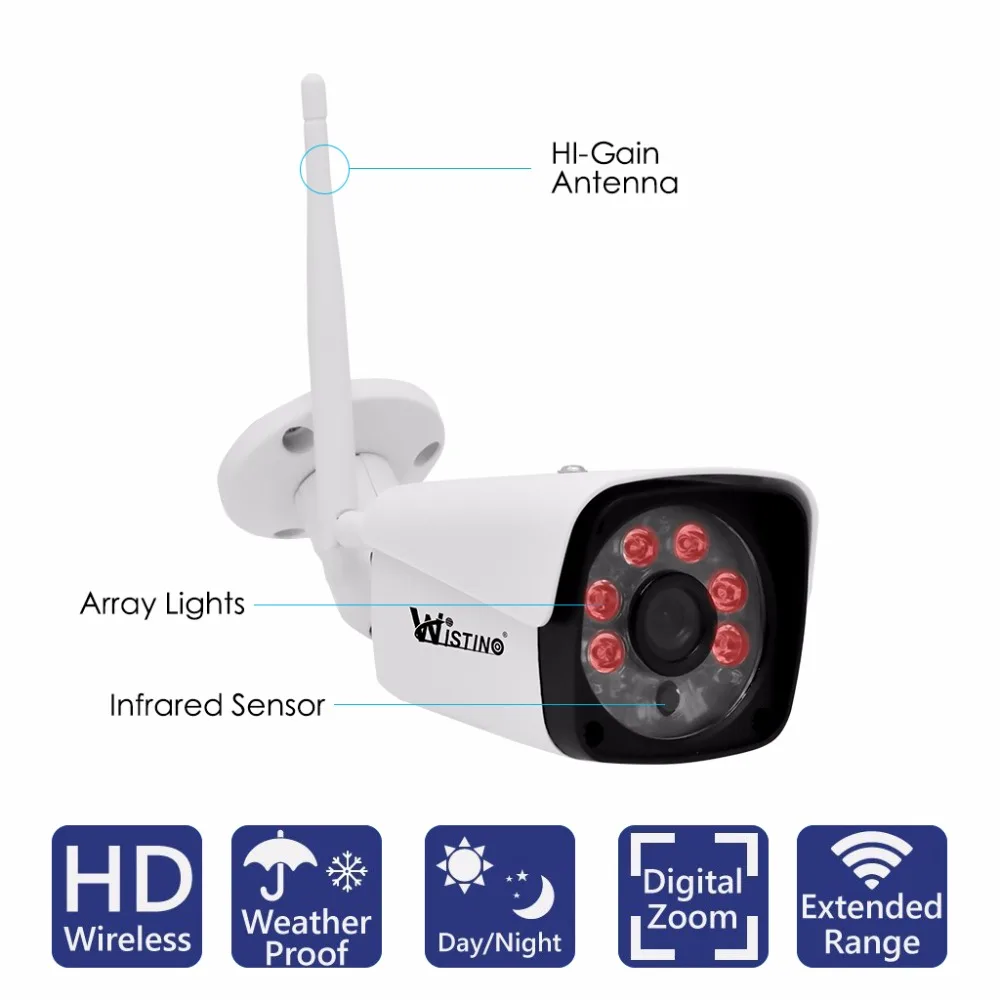

IR Night Vision and IP66 Waterproof
Equipped with 6 IR LEDs, the camera provides clear 59ft(18 meters) night vision with uniform luminance, low power consumption and longer service life.
IP66 professional security surveillance camera for Outdoor/Indoor use. Operating Conditions: -30 °C ~ 60 °C, Humidity 95% or less (non-condensing)
